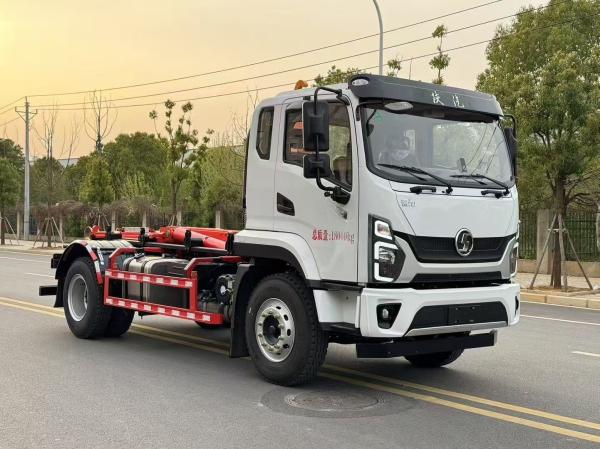

Shacman Ampliroll Arm Hook Lift Garbage Hook Lifting Vehicle Factory Direct Sale
6×4 Shacman 18 ton to 20 ton hook arm garbage truck Chassis configuration: Dongfeng Tianjin semi-cab, simple atmosphere, wide view, Cummins 210-power or Cummins 240-horsepower Euro three engine, Shaanxi gear 8-speed gearbox, 4350 + 1300mm wheelbase, with 1000 tires, 7 tons front axle , 10 tons rear axle, with direction assistance, clutch assistance, driving comfort.
6×4 Dongfeng 18 ton to 20 ton hook arm garbage truck Top-loading configuration: supporting 16-20m3 trash cans, the body of which is made of high-quality carbon steel plates of Wuhan Iron and Steel Group, can also be used with mobile compression trash cans of the same level, the hook arm is made of high-strength high-quality manganese steel, and the subframe is made of low-alloy 16 Channel steel, No. 20 square tube and 8mm, 5mm, 4mm, 16Mn steel plates are welded together, the action design of the flip frame and movable hook arm garbage truck is reasonable and reliable, and the operation of pulling box, locking, putting and unloading is simple and convenient, and the control The method is the intelligent control of the cab, and it can also be controlled by the optional traditional operating lever outside the cab according to user needs.
6×4 Shacman 18 ton to 20 ton hook arm garbage truck Specifications:
| Specifications for Shacman Lift Garbage Truck |
| Cabin | Driving Model: 6×4 Left Hand Drive or Right Hand Drive |
| HW76 cabin with one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
| Condition: brand new |
| Engine | Model: Shacman |
| Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling. Emission Standard: Euro II |
| Displacement: 9.726L |
| Transmission | HW15710 manual gearbox, 10F & 2R |
| Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | power steering, model 8118, hydraulic steering with power assitance |
| Front Axle | HF9, 1×9000 KGS
Steering with doubleT-cross section beam |
| Rear Axle | HC16, 2×16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 4.8 |
| Brake | Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 315/80R22.5 or 12R22.5, tubeless tires with one spare tire.
Optional: 12.00R20, radial tires |
| Fuel Tank | 400 Liters |
| Overall Dimension | 9500*2550*3400 mm |
6×4 Shacman 18 ton to 20 ton hook arm garbage truck Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
